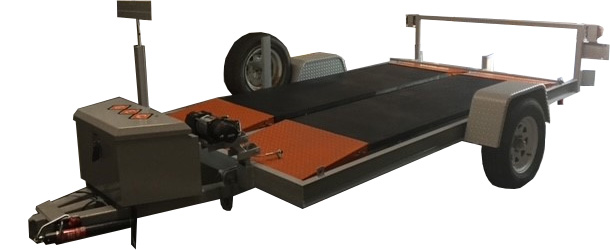

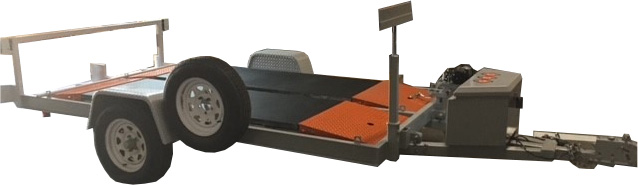

The MD700 is a Semi-Portable Wireless/ Cabled Axle Scale that can weigh loads up to 60,000 lbs. on tandem axles with an accuracy of +/- 1% of applied load or 50lbs (whichever is greater). It is a multi-axle design protected by an aluminum base extending the full length of the weigher with aluminum alloy ramps for durability and corrosion resistance. The MD700 is manufactured to withstand harsh use, it has an integrated WI300P Digital Indicator with functions that include a navigation/numeric keypad, return to zero, gross/net, lbs/kgs and more. The indicator consists of a 28-button keypad with a large backlit LCD display for ease of reading. With the wireless option, the system is connected to a digital weight indicator that displays weight and allows the use of peripheral devices, such as scoreboard displays or printers. Collected data is transmitted to the 10in touch display tablet with weighing software which wirelessly updates the scoreboard every second with the total calculated weight reading from all of the scale’s pc boards, eliminating delay. The printer has a commercial grade thermal printer allowing for hard copies of recorded weights to be generated easily.
MD700 Semi—Portable Axle Weigher
SPECIFICATIONS DATA SHEET
0 to 2,500 lbs ± 50lbs. : ± 50lbs.
2,550 to 10,000 lbs ± : 100lbs.
10,500 to 20,000 lbs ± : 150lbs.
Operating Temperature : 14°F (-10°C) to 122°F (50°C)
Storage Temperature : -20°F (-30°C) to 176°F (80°C)
Power Requirements : 110 – 220 VAC
Options:
- Available in Kilogram graduation and Pounds
- Wireless/Cabled Capability
Accuracy +/- 1% of applied load
Overall Dimensions
Overall Length : 11 feet
Overall Width : 30 inches
Height : 3-1/2 inches
Weighing Surface
Length : 7 feet
Width : 30 inches
Weight : 550 lbs. per side
Capacity:
30,000 lbs. Single Axles
60,000 lbs. Tandem Axles
Semi-portable
Axles Sizes—7ft.,11ft.,12ft.
Easy set-up
Individual Axle, Net, and Gross Weights
Comes with Trailer
User Friendly Technology
Print Ticket
Fits Tandem Tires
